UTG-2000/UTG-2020 Ultra Precise Ultrasonic Thickness Gauge
|
| Ultrasonic Thickness Gauges |
| |
|
Model No. UTG-2000
State of the art, digital Ultrasonic Thickness Gauges are menu driven, multi-functional units offering everything from the basic measurement to extended memory and RS 232 output capabilities. This dynamic series of gages are designed to measure the Thickness of metallic and non-metallic materials such as aluminum, titanium, plastics, ceramics, glass and any other good Ultrasonic wave conductor as long as it has parallel top and bottom surfaces. The UTG-2000 series gages will accurately display readings in either inch or millimeter after a simple calibration to a known Thickness or sound velocity.
Dynamic series of gauges give you the ultimate choice in Ultrasonic Thickness Measuring! |
|
| | |
 |
|
Ultrasonic Wall Thickness Gauge Measurement
The use of Ultrasonic non-destructive testing (NDT) to check material properties such as thickness measurement, is now extensively used in all facets of industry. The ability to gauge thickness measurement without requiring access to both sides of the test piece, offers this technology a multitude of possible applications. Metals, plastics, ceramics, glass and other materials can easily be measured by portable ultrasonic thickness gauges with a common accuracy of.001".
Ultrasonic thickness gauges measure the thickness of a part by measuring the time sound travels from the transducer through the material to the back end of a part, and then measures the time of reflection back to the transducer. The gauge then calculates the thickness based on the velocity of sound through the material being tested.
A broad variety of piezoelectric transducers, operating at given frequencies are utilized to generate sound when excited. Typically, a 5mhz frequency is standard on all Phase II Ultrasonic Thickness Gauges. Optional transducers are always available for a myriad of applications.
The direct contact method of pulse/echo type ultrasonic thickness gauges requires use of a couplant. Propylene Glycol is common, but many other substances can be used.
Easy to configure and use, many gauges today have the ability to retain memory, output to printers, PC's, and handheld portable devices. With the combination of an easy menu driven gauge and the data in memory, technician/operators have a world of technology at their fingertips to obtain highly accurate and cost effective measurements for all types of thickness applications.
Performance Parameters
| Display type |
4-digit LCD |
| Minimum display unit |
.001"/0.01mm |
| Measuring Range |
0.04-8.0" in steel w/standard probe |
| Display accuracy |
0.001" / 0.01mm |
| Sound velocity range |
3280-32805 ft/s (1000-9999m/s) |
| Operating temperature |
32-122 degrees F |
| Frequency |
5MHz |
| Update range |
4Hz |
| Power supply |
1.5v AAA alkaline batteries (2pc) |
| Battery life |
Approx. 250 hours/set |
| Power consumption |
Working current is less than 3V |
| Dimensions |
4-1/4 x 2-3/8 x 1" |
| Weight |
4.7oz |
Model No. UTG-2000: standard unit has measuring capabilities only
Model No. UTG-2020: standard unit incorporates vast memory functions, mini-printer, PC cable, charger, operations manual

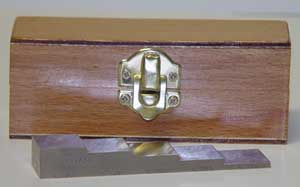

All Ultrasonic Gauges come complete with custom carry case.
 | |
 |
|
